Powertool Project

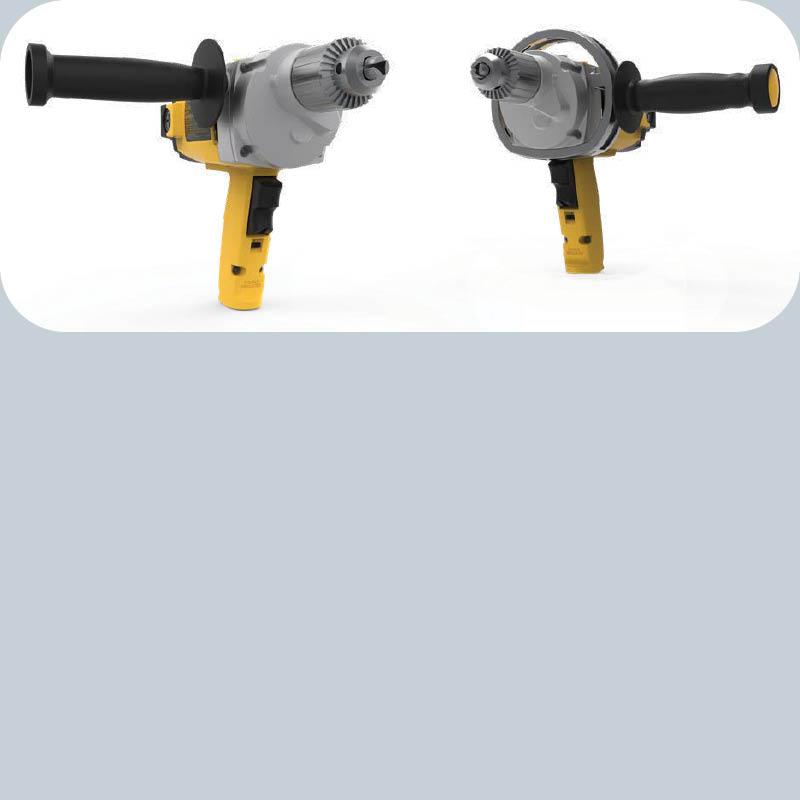

Overview Pic

Objective 1: Model an existing Powertool using Solidworks
and Keyshot.

Objective 2: Design a modification to improve the powertool.


Process

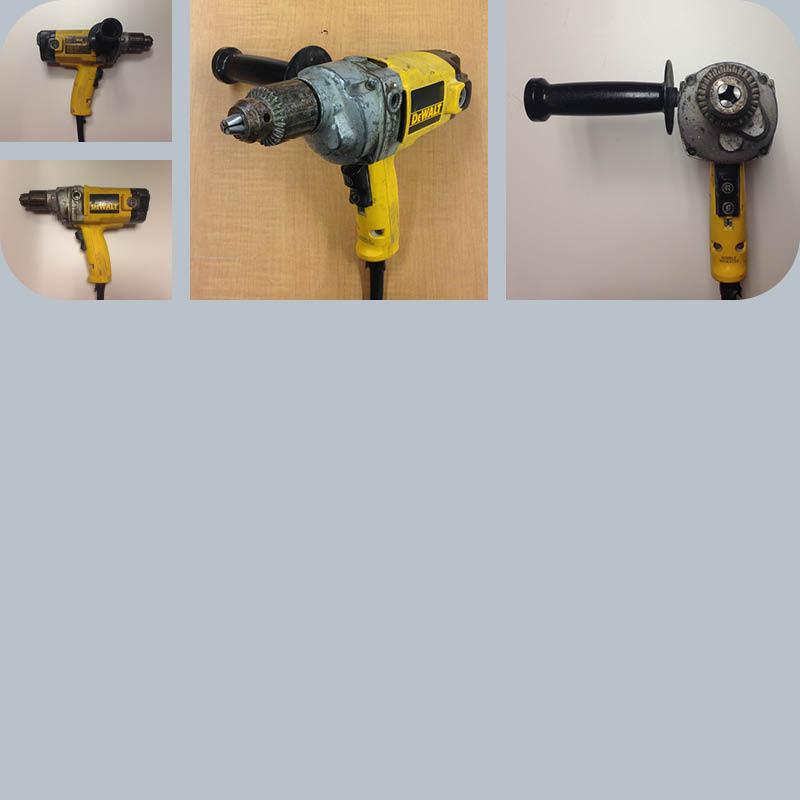

Actual Model

Campaign Setup Pic

Sketches

Campaign Rulesheet

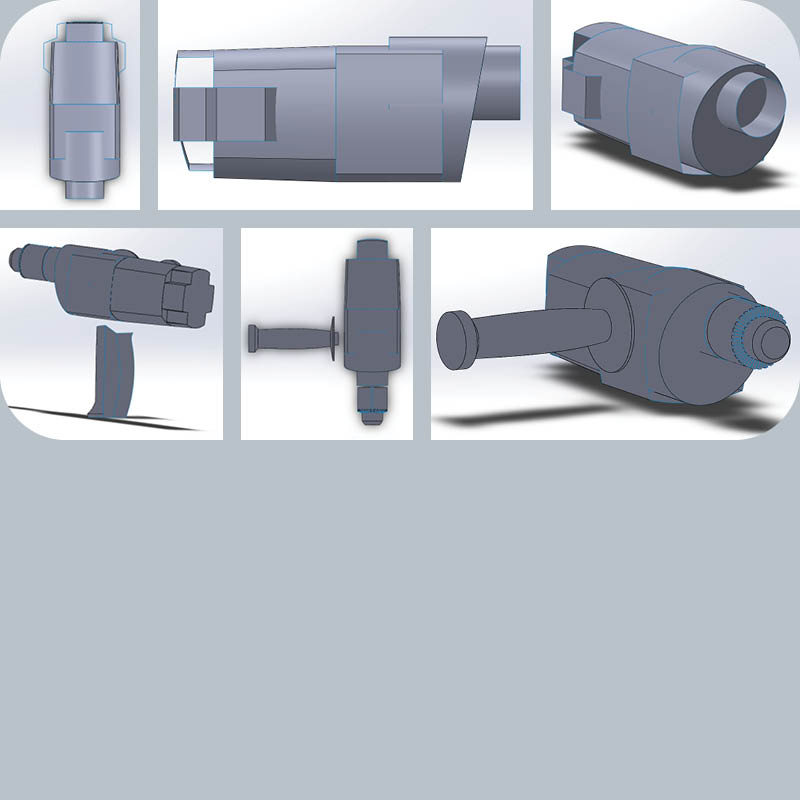

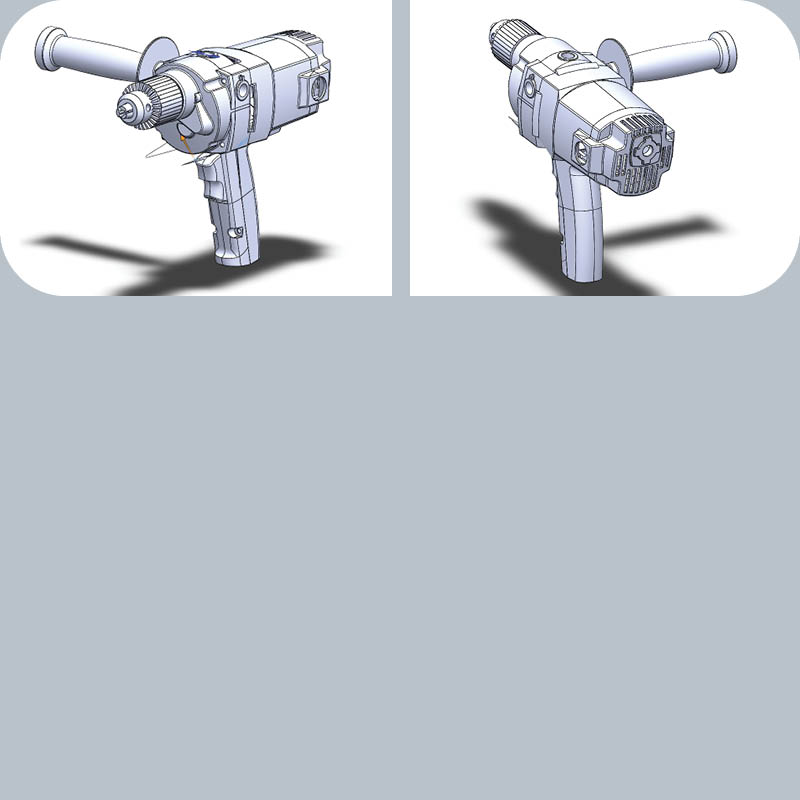

SolidWorks

Campaign Rulesheet
Campaign Rulesheet

Final Renders

Campaign Trail Process
Campaign Trail Process

Modification

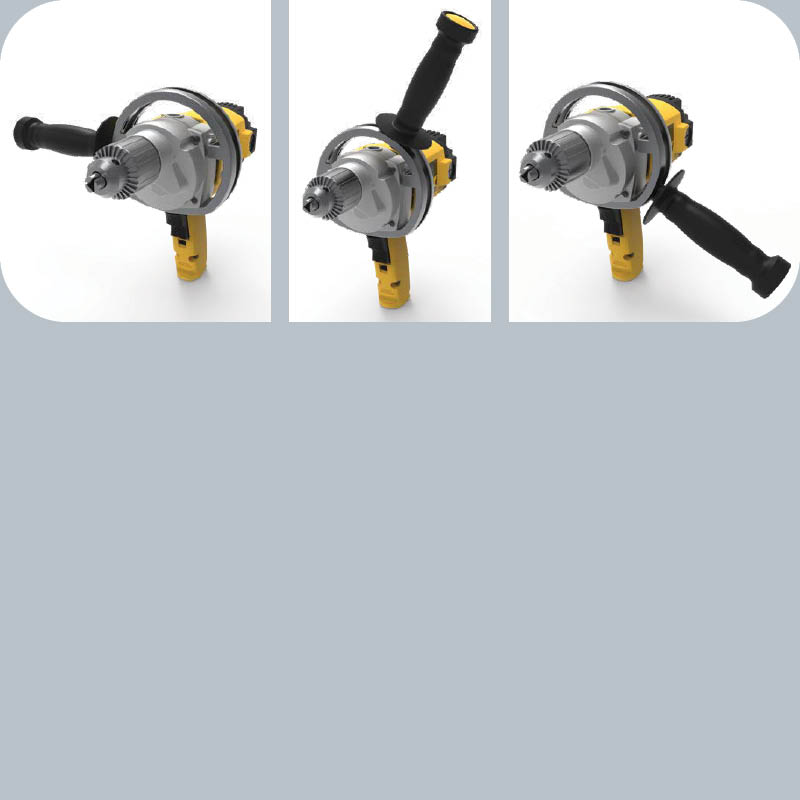

An adaptable handle that can rotate for maximum control.

Campaign Trail Process Pic2

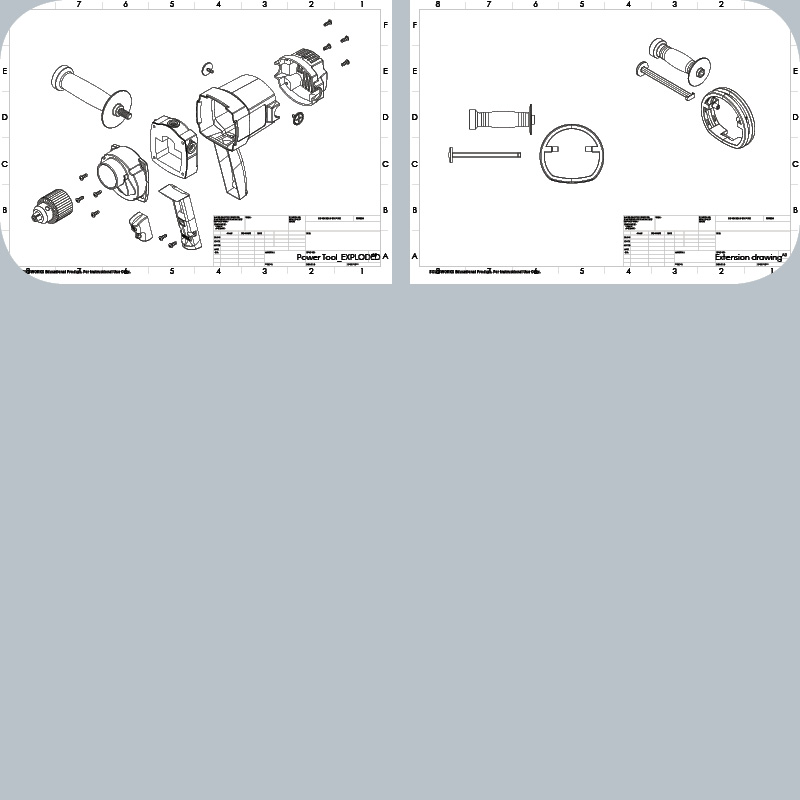

Drawings

Campaign Trail Process Pic2

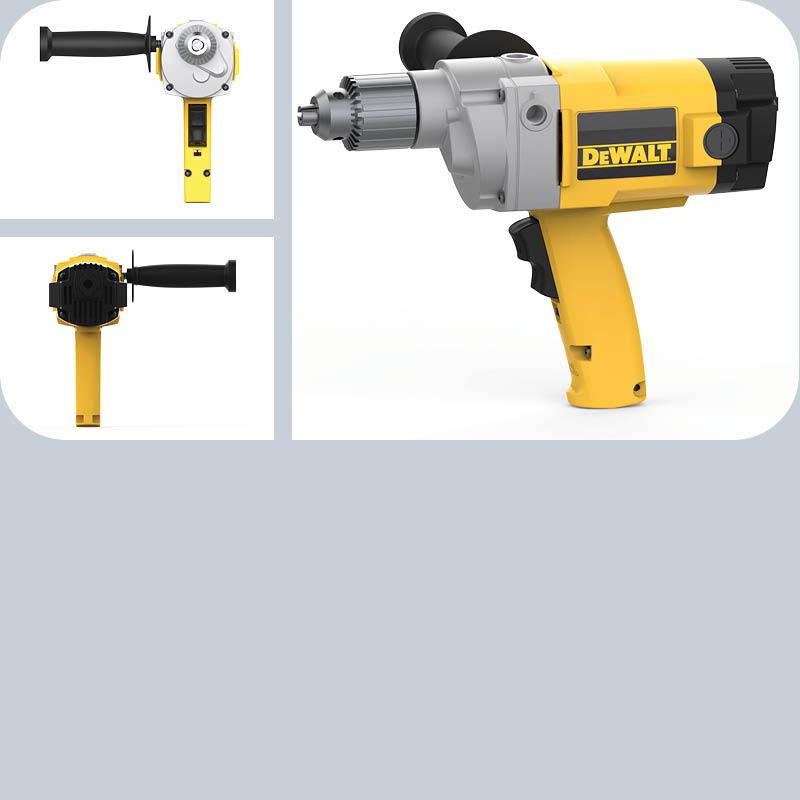

Renders

Campaign Trail Process Pic2

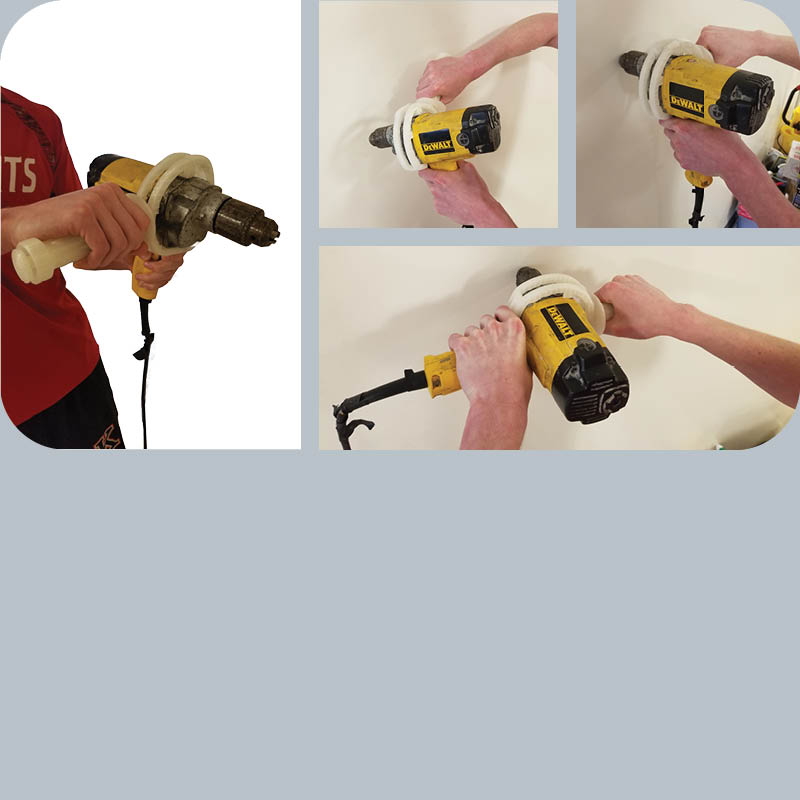

Campaign Trail Process Pic3

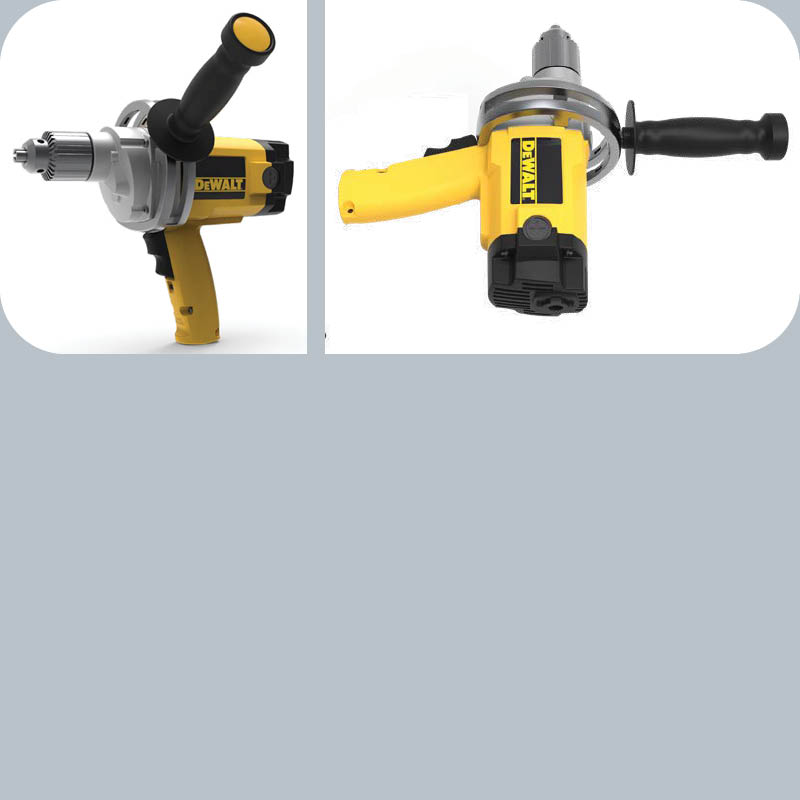

3D Model

Campaign Trail Process Pic3

Final thoughts

The 3-D prototype was very fragile. The manufactured product will need to be produced with appropriate materials for maximum sturdiness.
